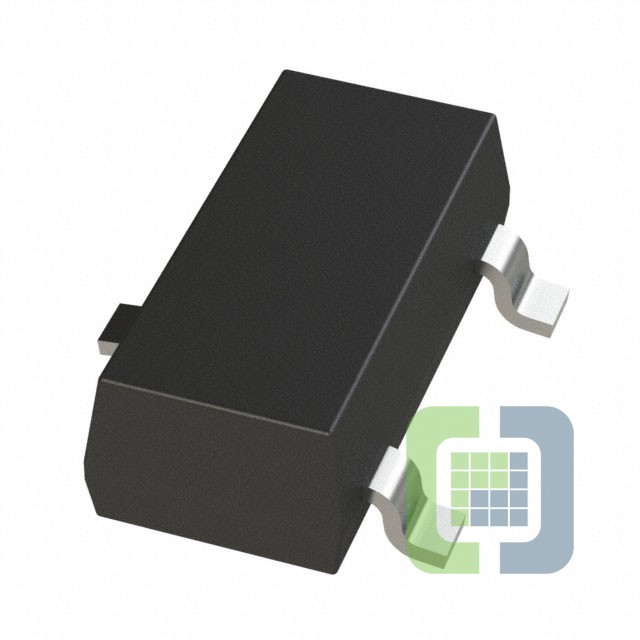

TLV76015DBZT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 15V 100MA SOT23-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 135,110,137
Can ship immediately
Pricing:
- 1$0.43
- 250$0.2392
- 500$0.2024
- 1,250$0.1564
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.1V @ 100mA
- Current - Output:100mA
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):-
- PSRR:-
- Control Features:-
- Protection Features:Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23-3
