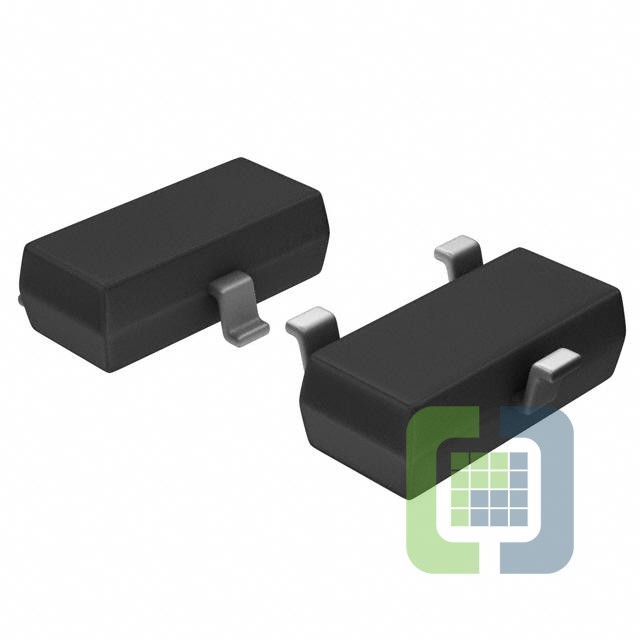

MCP1754ST-1802E/CB
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 1.8V 150MA SOT23A-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1754ST-1802E/CB Datasheet
-
ECAD Model
- Share
In Stock: 3,397
Can ship immediately
Pricing:
- 1$0.42
- 3,000$0.3193
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):1.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):90 µA
- Current - Supply (Max):250 µA
- PSRR:72dB (1kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23A-3
Related Products
IC REG LINEAR 2.2V 150MA 6WSON
- 1: $0.86000
- 3000: $0.31320
- 6000: $0.29160
IC REG LINEAR 2.5V 1A SOT223-4
- 1: $0.56000
- 250: $0.51124
- 500: $0.43508

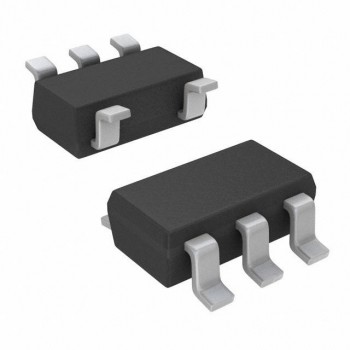

IC REG LINEAR 3V 50MA SC70-5
