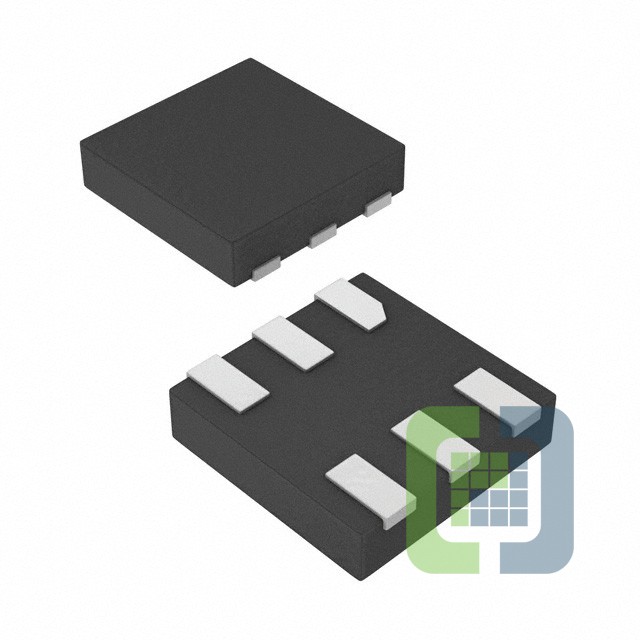

NCP715MX50TBG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 50MA 6XDFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP715MX50TBG Datasheet
-
ECAD Model
- Share
In Stock: 367,627,186
Can ship immediately
Pricing:
- 1$0.91
- 3,000$0.3335
- 6,000$0.3105
- 15,000$0.299
- 30,000$0.2875
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.35V @ 50mA
- Current - Output:50mA
- Current - Quiescent (Iq):4.2 µA
- Current - Supply (Max):5.8 µA
- PSRR:56dB (100kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-XFDFN
- Supplier Device Package:6-XDFN (1.5x1.5)
Related Products
IC REG LINEAR 2.8V 150MA SOT23-5
- 1: $0.84000
- 1000: $0.33760
- 2000: $0.30595

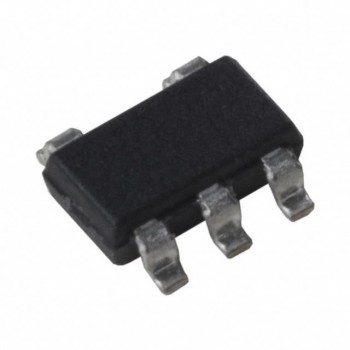

IC REG LINEAR 2.7V 150MA SOT23-5
