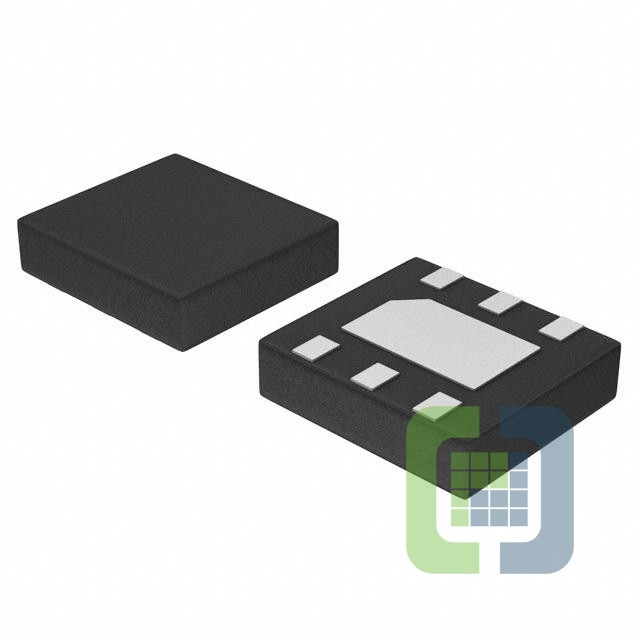

NCP606MNADJT2G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 500MA 6DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP606MNADJT2G Datasheet
-
ECAD Model
- Share
In Stock: 3,021
Can ship immediately
Pricing:
- 1$1.02
- 3,000$0.41062
- 6,000$0.39009
- 15,000$0.37542
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.47V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):180 µA
- Current - Supply (Max):-
- PSRR:62dB ~ 40dB (120Hz ~ 10kHz)
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:6-VDFN Exposed Pad
- Supplier Device Package:6-DFN (3x3)
