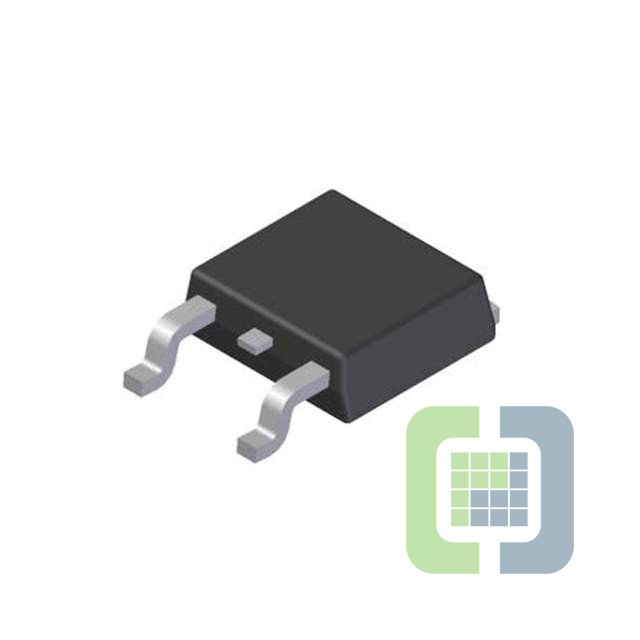

AP2114D-3.3TRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 1A TO252-2
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP2114D-3.3TRG1 Datasheet
-
ECAD Model
- Share
In Stock: 4,283
Can ship immediately
Pricing:
- 1$1.54
- 2,500$0.61796
- 5,000$0.58706
- 12,500$0.56499
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.75V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):90 µA
- Current - Supply (Max):-
- PSRR:65dB (100Hz ~ 1kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
