ADP1752ACPZ-2.5-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 800MA 16LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP1752ACPZ-2.5-R7 Datasheet
-
ECAD Model
- Share
In Stock: 1,700
Can ship immediately
Pricing:
- 1$2.91
- 1,500$1.44649
- 3,000$1.34674
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):3.6V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.14V @ 800mA
- Current - Output:800mA
- Current - Quiescent (Iq):800 µA
- Current - Supply (Max):1.2 mA
- PSRR:56dB ~ 51dB (1kHz ~ 100kHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

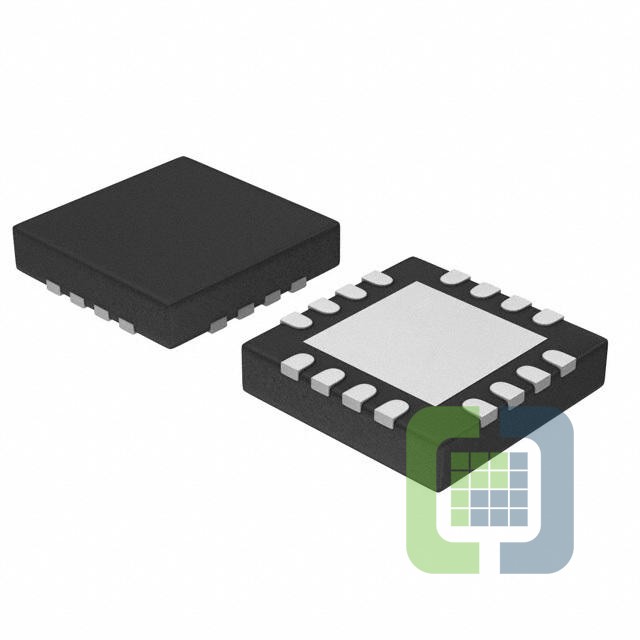

- Package / Case:16-WQFN Exposed Pad, CSP
- Supplier Device Package:16-LFCSP-WQ (4x4)
