LM2941CS
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A DDPAK
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 273
Can ship immediately
Pricing:
- 1$3.06
- 10$2.74447
- 45$2.59435
- 135$2.24848
- 540$1.91408
- 1,035$1.61428
- 2,520$1.53357
- 5,040$1.47592
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):20V
- Voltage Dropout (Max):1V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):15 mA
- PSRR:-
- Control Features:Enable
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:DDPAK/TO-263-5
Related Products
IC REG LINEAR -5.2V 1.8A TO220-3
- 1: $3.16000
- 10: $2.84188
- 45: $2.68659
IC REG LINEAR 3.3V 800MA DDPAK
- 1: $3.21000
- 10: $2.88687
- 45: $2.72885

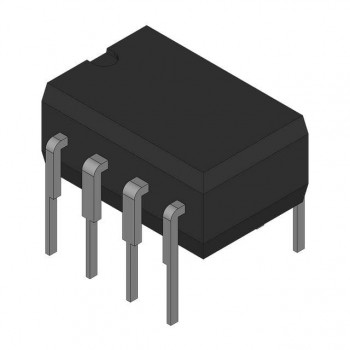

IC REG LINEAR POS ADJ 500MA 8DIP
- 1: $3.26000
- 10: $2.93188
- 50: $2.77153

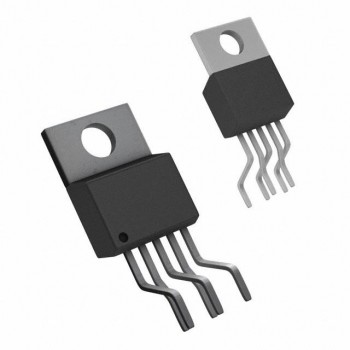

IC REG LINEAR 3.3V 1.5A TO220-5
