TPS74301RGWT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1.5A 20VQFN
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,326
Can ship immediately
Pricing:
- 1$5.69
- 250$3.7444
- 500$3.35984
- 1,250$2.8336
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):3.6V
- Voltage Dropout (Max):0.12V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):115 µA
- Current - Supply (Max):1.5 mA
- PSRR:73dB ~ 42dB (1kHz ~ 800kHz)
- Control Features:Enable, Power Good, Tracking
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:20-VQFN Exposed Pad
- Supplier Device Package:20-VQFN (5x5)
Related Products

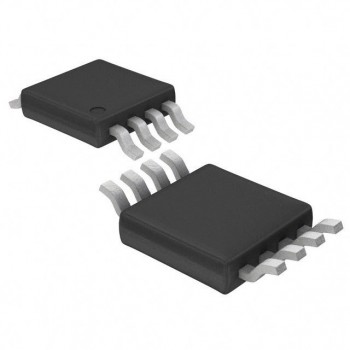

IC REG LINEAR POS ADJ 40MA 8SOIC
- 1: $3.99000
- 10: $3.58552
- 25: $3.38958
IC REG LIN POS ADJ 5A DDPAK
- 1: $4.01000
- 10: $3.60051
- 45: $3.40366

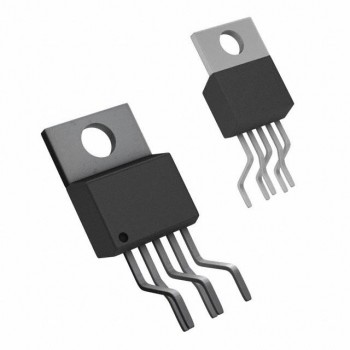

IC REG LINEAR 5V 250MA TO220-5
