LP3855ES-ADJ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1.5A DDPAK
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 293
Can ship immediately
Pricing:
- 1$6.29
- 10$5.64933
- 45$5.34126
- 135$4.62901
- 540$3.94061
- 1,035$3.32341
- 2,520$3.15724
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):7V
- Voltage - Output (Min/Fixed):1.23V
- Voltage - Output (Max):6.6V
- Voltage Dropout (Max):0.435V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):3 mA
- Current - Supply (Max):10 mA
- PSRR:73dB ~ 57dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:DDPAK/TO-263-5
Related Products
IC REG LIN 2.5V/3.3V 1A 28HTSSOP
- 1: $6.31000
- 10: $5.70021
- 50: $5.43508
IC REG LINEAR 3.3V 5A TO220-5
- 1: $6.31000
- 10: $5.70021
- 50: $5.43508
IC REG LINEAR 3.3V/1.8V 20HTSSOP
- 1: $6.32000
- 10: $5.67846
- 70: $5.36836
IC REG LINEAR POS ADJ 20HTSSOP
- 1: $6.32000
- 10: $5.67846
- 70: $5.36836
IC REG LINEAR 3.3V/2.5V 20HTSSOP
- 1: $6.32000
- 10: $5.67846
- 70: $5.36836
IC REG LIN 1.8V 3A DDPAK/TO263-5
- 1: $6.40000
- 10: $5.74940
- 45: $5.43576
IC REG LIN 2.5V 3A DDPAK/TO263-5
- 1: $6.40000
- 10: $5.74940
- 45: $5.43576
IC REG LIN 5V 3A DDPAK/TO263-5
- 1: $6.40000
- 10: $5.74940
- 45: $5.43576

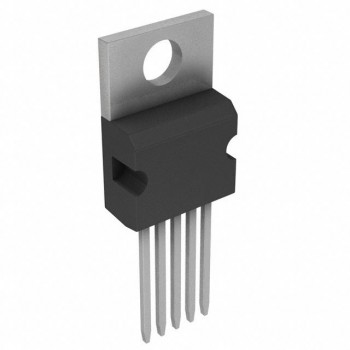

IC REG LIN POS ADJ 7.5A TO220-5
