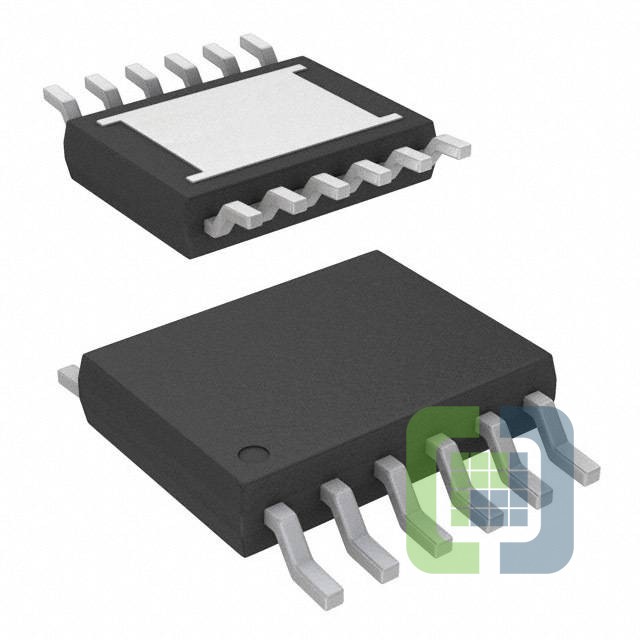

LT3015MPMSE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN NEG ADJ 1.5A 12MSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3015MPMSE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 506
Can ship immediately
Pricing:
- 1$15.25
- 25$10.12454
- 100$8.37135
- 250$7.9528
- 500$7.7734
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-30V
- Voltage - Output (Min/Fixed):-1.22V
- Voltage - Output (Max):-29.5V
- Voltage Dropout (Max):0.5V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):2.4 mA
- Current - Supply (Max):70 mA
- PSRR:65dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-55°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:12-TSSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:12-MSOP-EP
