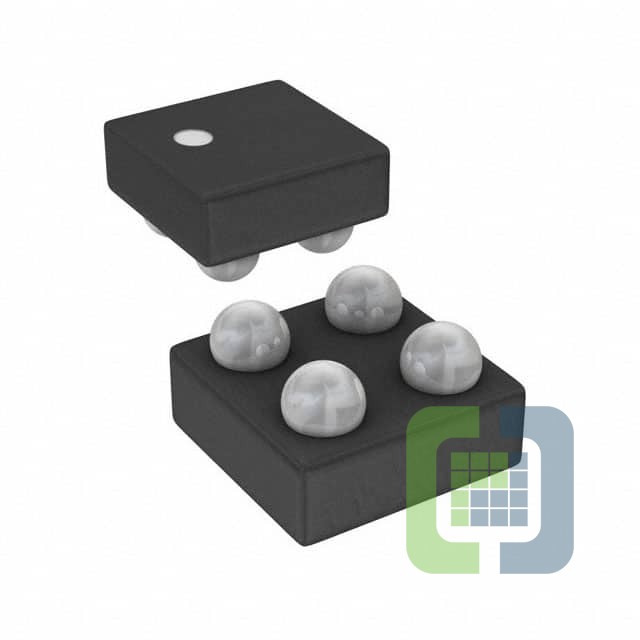

TCR3UG50B,LF
Toshiba Electronic Devices and Storage Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 300MA 4WCSP-F
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TCR3UG50B,LF Datasheet
-
ECAD Model
- Share
In Stock: 10,096
Can ship immediately
Pricing:
- 1$0.49
- 5,000$0.12245
- 10,000$0.11455
- 25,000$0.10507
- 50,000$0.10112
Quote It
Technical Details
- Series:TCR3UG
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.195V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):680 nA
- Current - Supply (Max):-
- PSRR:70dB (1kHz)
- Control Features:Enable
- Protection Features:Inrush Current, Over Current, Thermal Shutdown
- Operating Temperature:-40°C ~ 85°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:4-XFBGA, WLCSP
- Supplier Device Package:4-WCSP-F (0.65x0.65)
