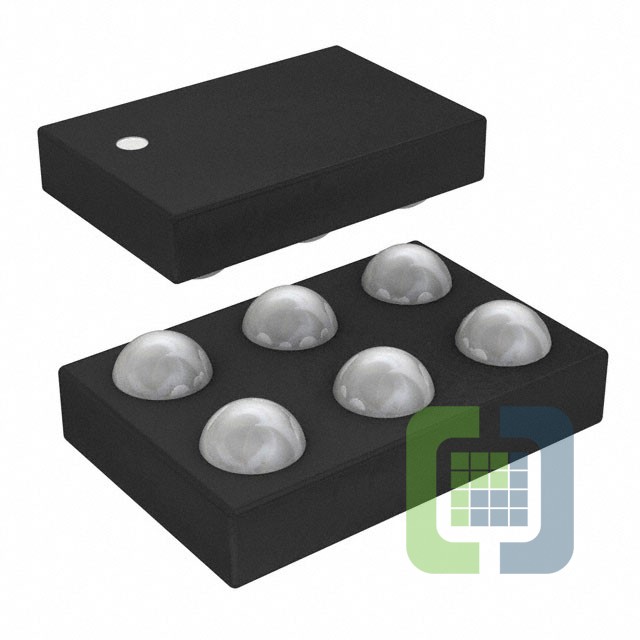

TCR15AG25,LF
Toshiba Electronic Devices and Storage Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 1.5A 6WCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TCR15AG25,LF Datasheet
-
ECAD Model
- Share
In Stock: 9,912
Can ship immediately
Pricing:
- 1$0.66
- 5,000$0.22275
- 10,000$0.2145
- 25,000$0.20625
Quote It
Technical Details
- Series:TCR15AG
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.648V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):40 µA
- Current - Supply (Max):-
- PSRR:95dB ~ 60dB (1kHz)
- Control Features:Enable
- Protection Features:Current Limit, Thermal Shutdown, UVLO
- Operating Temperature:-40°C ~ 85°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-XFBGA, WLCSP
- Supplier Device Package:6-WCSP (1.2x0.80)
