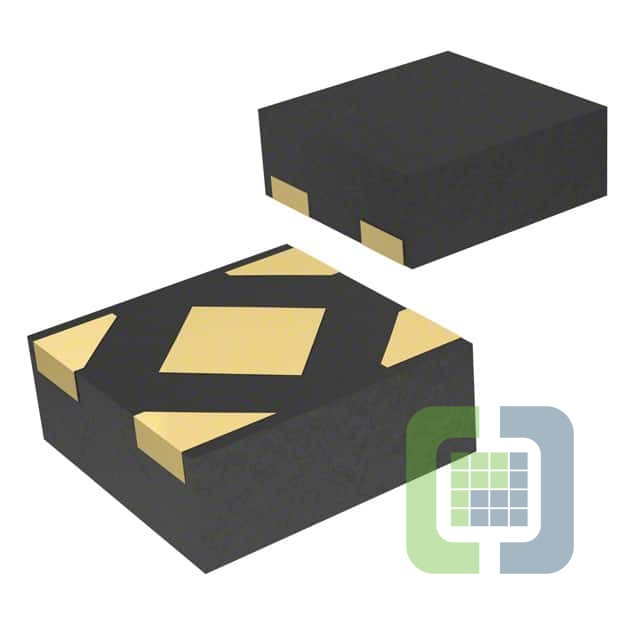

TLV73315PDQNR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.5V 300MA 4X2SON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 5,160
Can ship immediately
Pricing:
- 1$0.34
- 3,000$0.12705
- 6,000$0.11935
- 15,000$0.11165
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.4V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):60 µA
- Current - Supply (Max):-
- PSRR:68dB ~ 28dB (100Hz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:4-XDFN Exposed Pad
- Supplier Device Package:4-X2SON (1x1)
