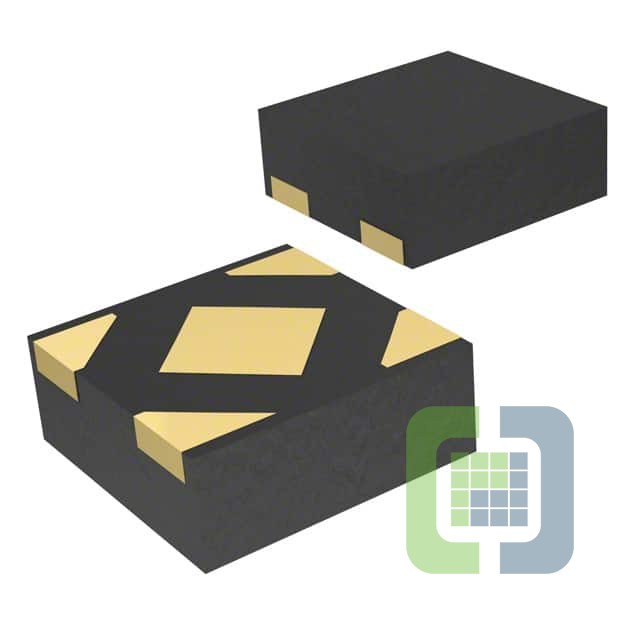

TLV70736PDQNT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.6V 200MA 4X2SON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 3,088
Can ship immediately
Pricing:
- 1$0.42
- 3,000$0.14685
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):3.6V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.25V @ 150mA
- Current - Output:200mA
- Current - Quiescent (Iq):50 µA
- Current - Supply (Max):-
- PSRR:70dB ~ 50dB (100Hz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:4-XDFN Exposed Pad
- Supplier Device Package:4-X2SON (1x1)
