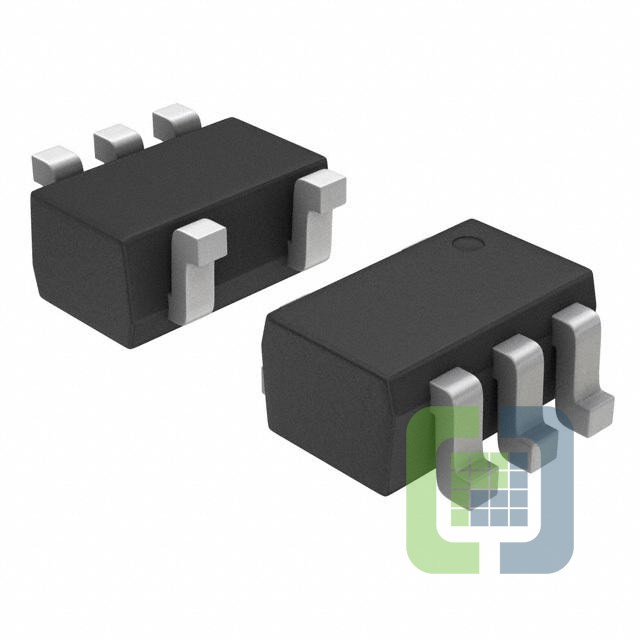

NCP4683DSQ28T1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.8V 300MA SC88A
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP4683DSQ28T1G Datasheet
-
ECAD Model
- Share
In Stock: 3,053
Can ship immediately
Pricing:
- 1$0.24
- 3,000$0.24
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.25V
- Voltage - Output (Min/Fixed):2.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.3V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):75 µA
- Current - Supply (Max):-
- PSRR:65dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:5-TSSOP, SC-70-5, SOT-353
- Supplier Device Package:SC-88A (SC-70-5/SOT-353)
