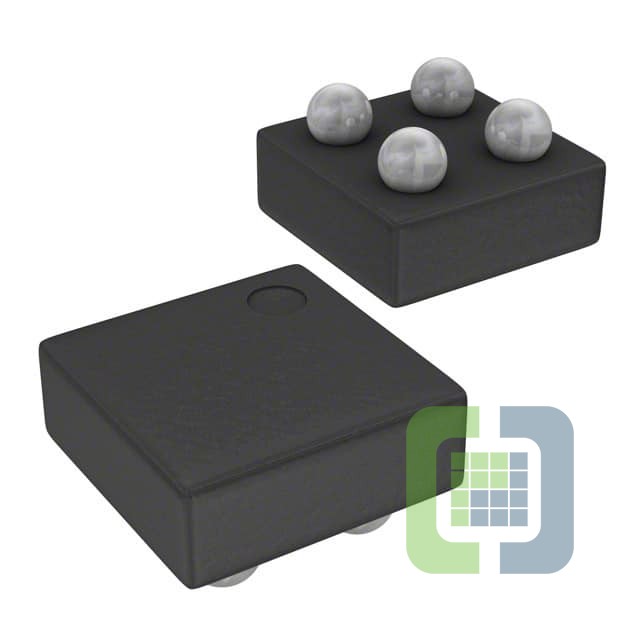

LDLN025J29R

Technical Details

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):2.9V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.2V @ 250mA

• Current - Output:250mA
• Current - Quiescent (Iq):25 µA
• Current - Supply (Max):425 µA
• PSRR:80dB ~ 60dB (100Hz ~ 100KHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Short Circuit, Soft Start
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount
• Package / Case:4-XFBGA, FCBGA
• Supplier Device Package:4-FlipChip (0.63x0.63)
