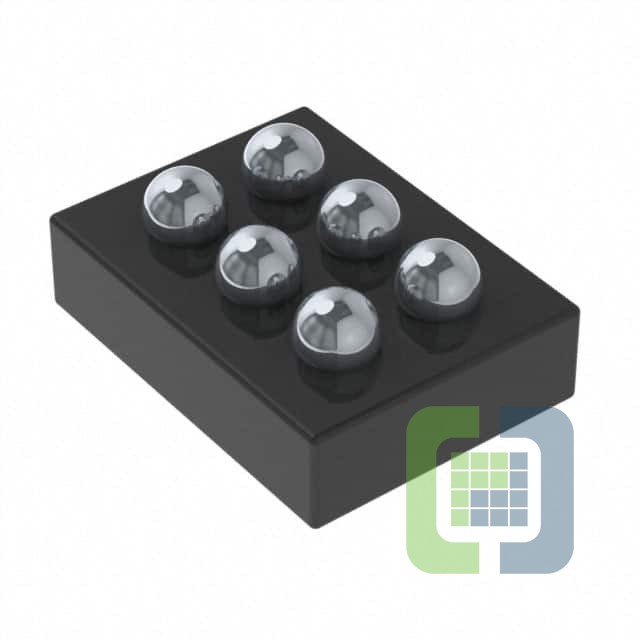

TCR15AGADJ,LF
Toshiba Electronic Devices and Storage Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1.5A 6WCSPF
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 9,923
Can ship immediately
Pricing:
- 1$0.72
Quote It
Technical Details
- Series:TCR15AG
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):3.6V
- Voltage Dropout (Max):0.216V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):40 µA
- Current - Supply (Max):-
- PSRR:95dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 85°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-XFBGA, WLCSP
- Supplier Device Package:6-WCSPF (0.80x1.2)
