NCV8164AML300TCG

Technical Details

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):3V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.197V @ 300mA

• Current - Output:300mA
• Current - Quiescent (Iq):40 µA
• Current - Supply (Max):-
• PSRR:83dB ~ 61dB (100Hz ~ 100kHz)
• Control Features:Enable, Power Good
• Protection Features:Over Current, Over Temperature
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Surface Mount, Wettable Flank

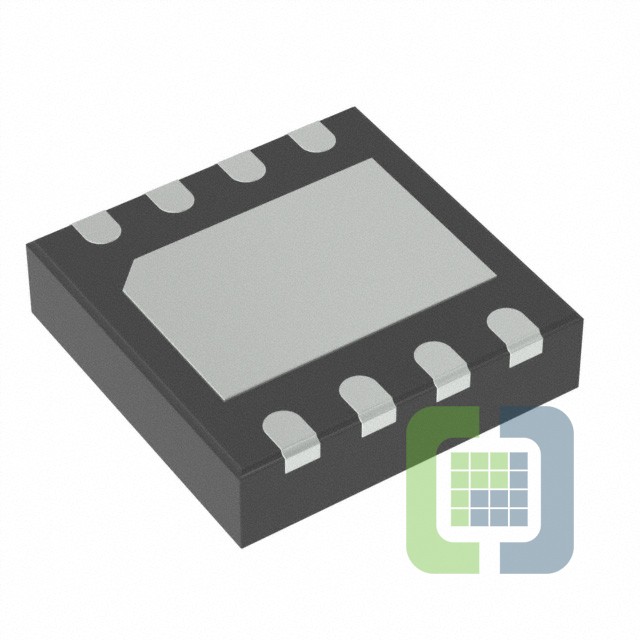

• Package / Case:8-VDFN Exposed Pad
• Supplier Device Package:8-DFNW (3x3)
