RC1117DX

Technical Details

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):7.5V
• Voltage - Output (Min/Fixed):1.25V
• Voltage - Output (Max):6.3V
• Voltage Dropout (Max):1.2V @ 1A

• Current - Output:1A
• Current - Quiescent (Iq):-
• Current - Supply (Max):-
• PSRR:72dB (120Hz)
• Control Features:-
• Protection Features:Over Current, Over Temperature
• Operating Temperature:0°C ~ 125°C
• Mounting Type:Surface Mount

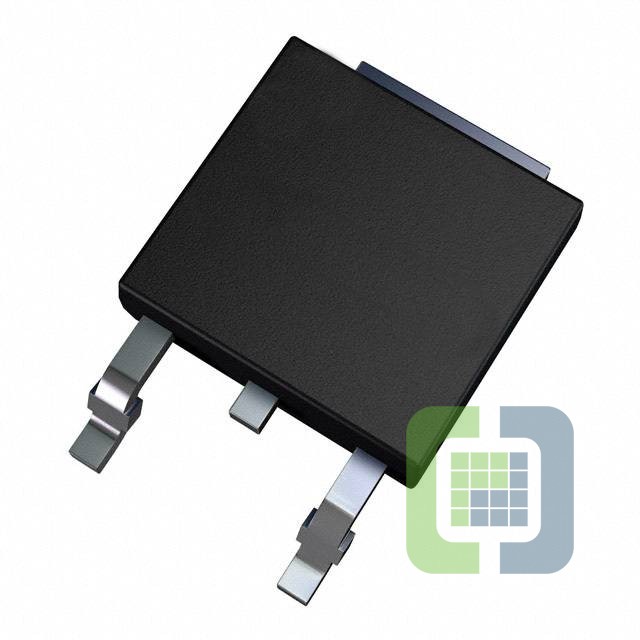

• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
• Supplier Device Package:D-PAK (TO-252)
