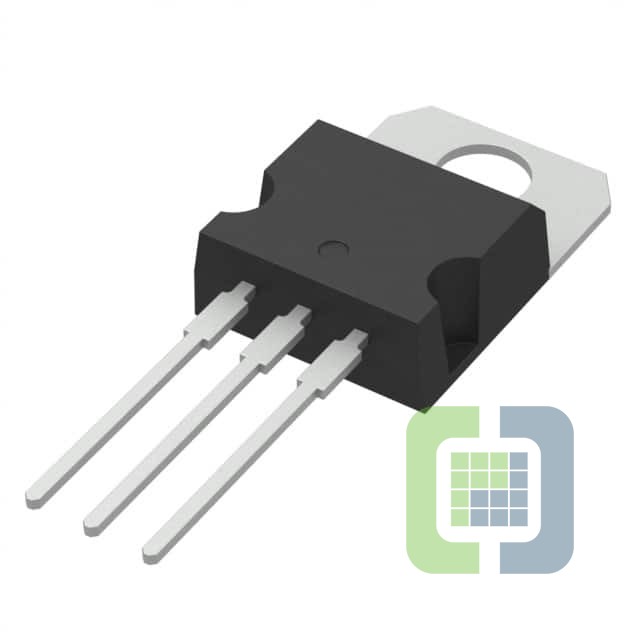

L7824ACV
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 24V 1.5A TO220AB
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet L7824ACV Datasheet
-
ECAD Model
- Share
In Stock: 3,633
Can ship immediately
Pricing:
- 1$0.6
- 50$0.4776
- 100$0.38197
- 500$0.30015
- 1,000$0.23193
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):24V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A (Typ)
- Current - Output:1.5A
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):-
- PSRR:54dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3
- Supplier Device Package:TO-220AB
