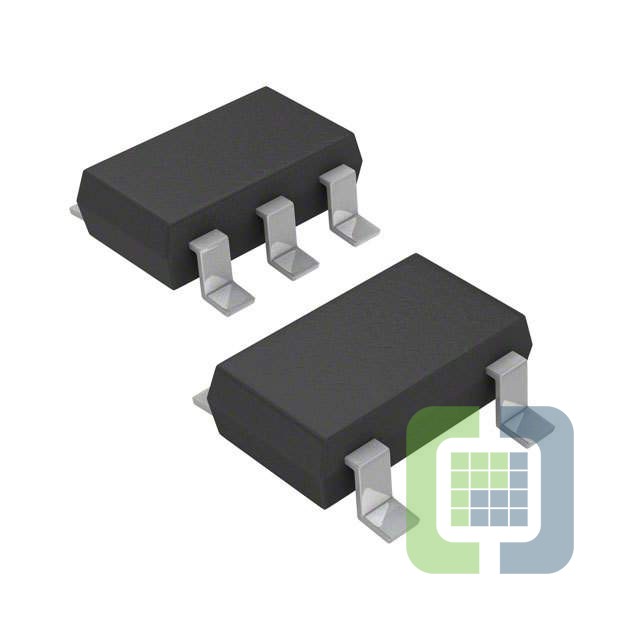

ADP1713AUJZ-1.15R7

Technical Details

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):1.15V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.23V @ 300mA

• Current - Output:300mA
• Current - Quiescent (Iq):70 µA
• Current - Supply (Max):420 µA
• PSRR:72dB (1kHz)
• Control Features:Enable, Bypass
• Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount
• Package / Case:SOT-23-5 Thin, TSOT-23-5
• Supplier Device Package:TSOT-5
