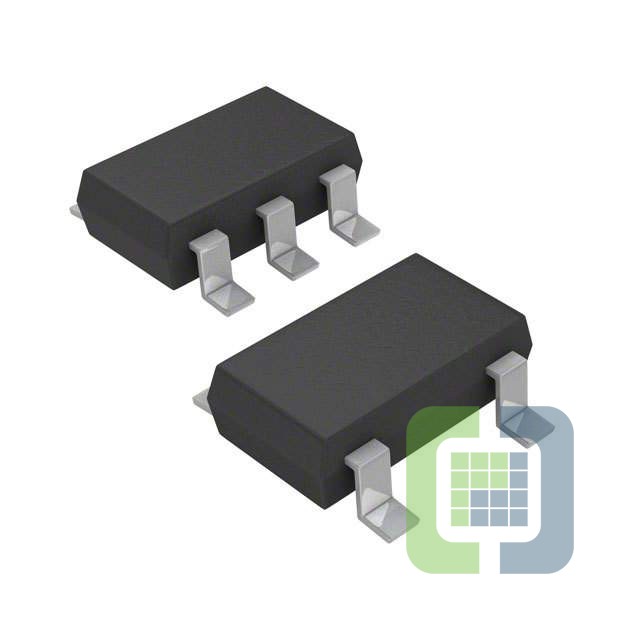

ADP1714AUJZ-1.1-R7
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.1V 300MA TSOT5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP1714AUJZ-1.1-R7 Datasheet
-
ECAD Model
- Share
In Stock: 21,271
Can ship immediately
Pricing:
- 1$0.71
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.1V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.23V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):70 µA
- Current - Supply (Max):420 µA
- PSRR:65dB (1kHz)
- Control Features:Enable, Tracking
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:TSOT-5
