NCP694DSAN08T1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 0.8V 1A 6HSON
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP694DSAN08T1G Datasheet
-
ECAD Model
- Share
In Stock: 6,103
Can ship immediately
Pricing:
- 1$0.74
- 3,000$0.74
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.72V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):100 µA
- Current - Supply (Max):-
- PSRR:70dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount

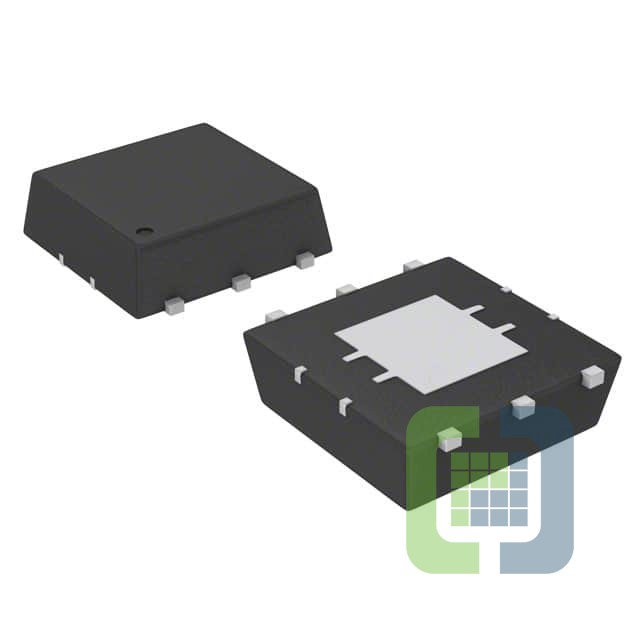

- Package / Case:6-SMD, No Lead Exposed Pad
- Supplier Device Package:6-HSON
