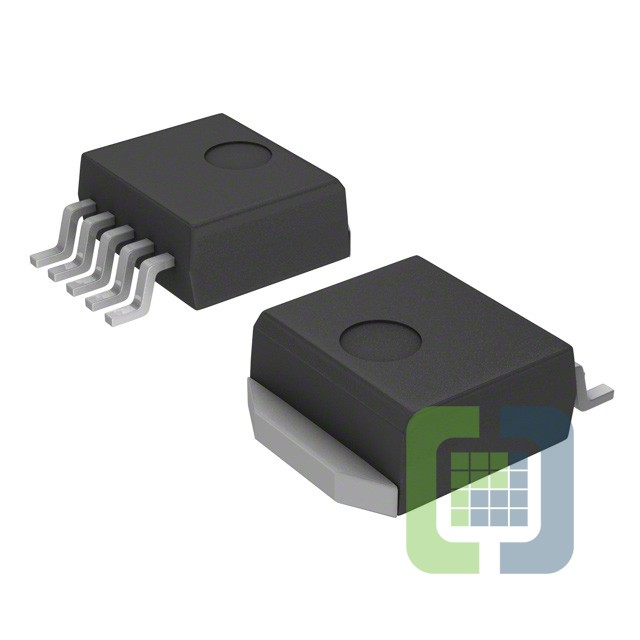

CS5257A-1GDP5
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 7A D2PAK-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS5257A-1GDP5 Datasheet
-
ECAD Model
- Share
In Stock: 4,904
Can ship immediately
Pricing:
- 1$0.85
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):13V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):1.25V @ 7A
- Current - Output:7A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:80dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 70°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:D2PAK-5
