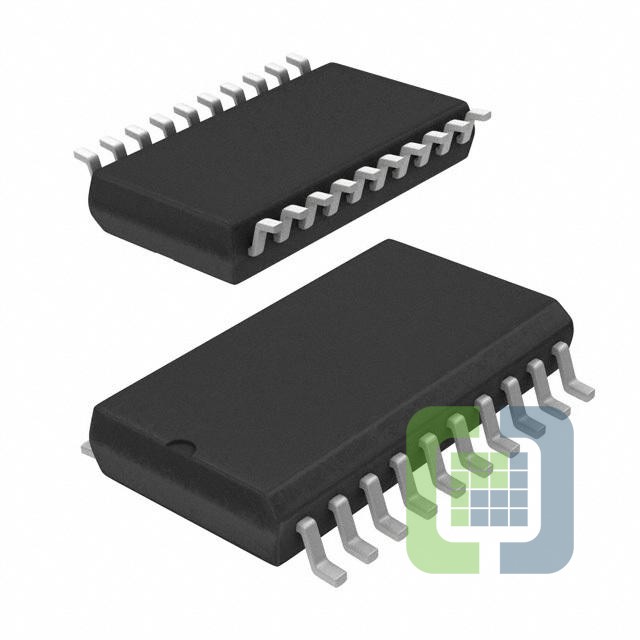

CS8101YDWF20
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 100MA 20SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8101YDWF20 Datasheet
-
ECAD Model
- Share
In Stock: 1,199
Can ship immediately
Pricing:
- 1$1.08
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 100mA
- Current - Output:100mA
- Current - Quiescent (Iq):140 µA
- Current - Supply (Max):20 mA
- PSRR:75dB (120Hz)
- Control Features:Enable, Reset
- Protection Features:Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:20-SOIC
