MAX8559ETAGG+T
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR FIXED POS LDO REG
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MAX8559ETAGG+T Datasheet
-
ECAD Model
- Share
In Stock: 14,986
Can ship immediately
Pricing:
- 1$1.12
- 2,500$0.9535
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):6.5V
- Voltage - Output (Min/Fixed):3V, 3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.12V @ 100mA, 0.12V @ 100mA
- Current - Output:300mA, 300mA
- Current - Quiescent (Iq):290 µA
- Current - Supply (Max):-
- PSRR:70dB ~ 54dB (10kHz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount

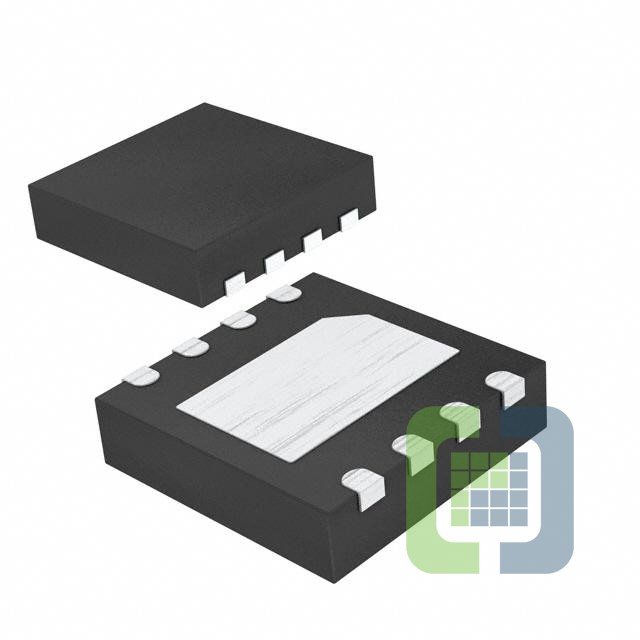

- Package / Case:8-WDFN Exposed Pad
- Supplier Device Package:8-TDFN-EP (3x3)
