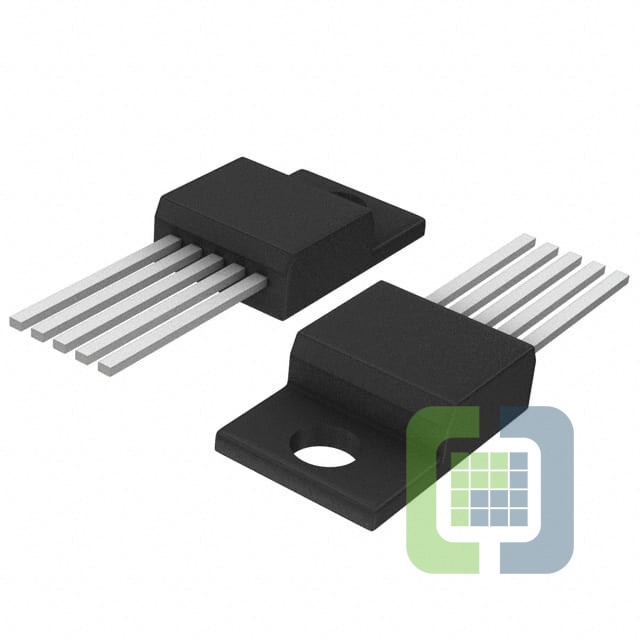

CS8120YT5
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 300MA TO220-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8120YT5 Datasheet
-
ECAD Model
- Share
In Stock: 11,980
Can ship immediately
Pricing:
- 1$1.53
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.5V @ 200mA
- Current - Output:300mA
- Current - Quiescent (Iq):650 µA
- Current - Supply (Max):15 mA
- PSRR:70dB (120Hz)
- Control Features:Enable, Reset
- Protection Features:Over Temperature, Over Voltage, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-5
- Supplier Device Package:TO-220-5
