MC7905BD2TR4G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR -5V 1A D2PAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MC7905BD2TR4G Datasheet
-
ECAD Model
- Share
In Stock: 16,184,150
Can ship immediately
Pricing:
- 1$0.86
- 800$0.4694
- 1,600$0.37552
- 2,400$0.34032
- 5,600$0.31684
- 20,000$0.30511
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Negative
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):-35V
- Voltage - Output (Min/Fixed):-5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.3V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:70dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package:D2PAK
Related Products

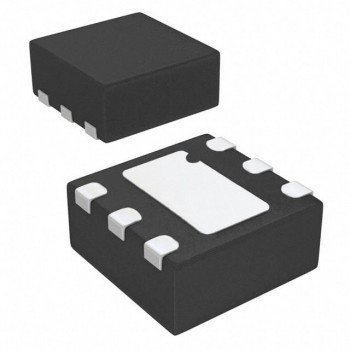

IC REG LINEAR 2.5V 150MA 6WSON
- 1: $0.86000
- 3000: $0.31320
- 6000: $0.29160

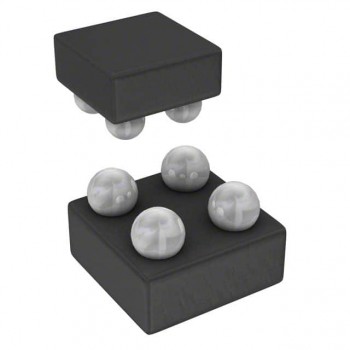

IC REG LINEAR 1.1V 300MA 5DSBGA
