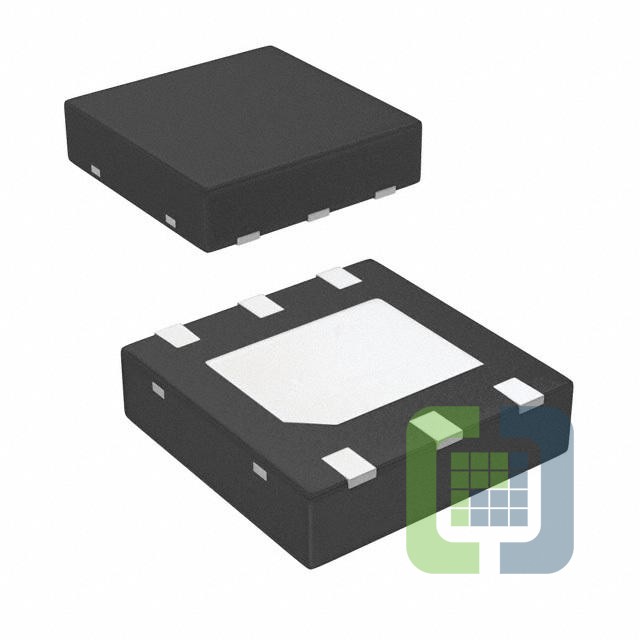

LP38691QSD-3.3/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 500MA 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,123
Can ship immediately
Pricing:
- 1$2.27
- 1,000$1.05125
- 2,000$0.97875
- 5,000$0.9425
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):10V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.55V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):55 µA
- Current - Supply (Max):100 µA
- PSRR:55dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (3x3)
