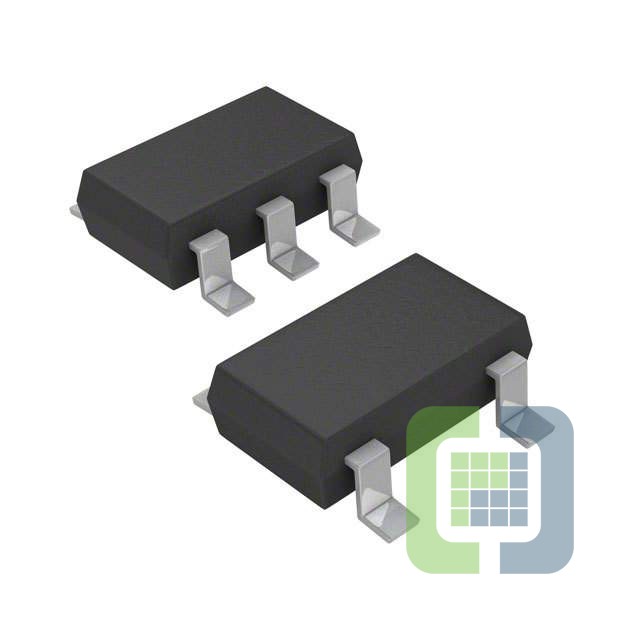

ADP7118AUJZ-3.3-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 3.3V 200MA TSOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP7118AUJZ-3.3-R7 Datasheet
-
ECAD Model
- Share
In Stock: 6,479
Can ship immediately
Pricing:
- 1$2.41
- 3,000$1.11465
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.42V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):140 µA
- Current - Supply (Max):320 µA
- PSRR:88dB ~ 50dB (10kHz ~ 1MHz)
- Control Features:Enable, Soft Start
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:TSOT-23-5
