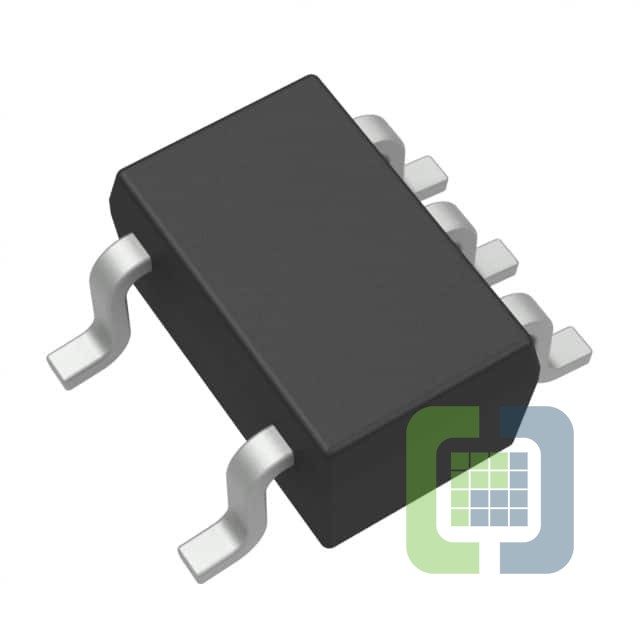

TPS71501MDCKREP
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 50MA SC70-5
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,788
Can ship immediately
Pricing:
- 1$3.34
- 3,000$1.58004
- 6,000$1.52064
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):0.23V @ 500mA
- Current - Output:50mA
- Current - Quiescent (Iq):4.2 µA
- Current - Supply (Max):5.8 µA
- PSRR:55dB ~ 52dB (120Hz)
- Control Features:Enable, Power Good
- Protection Features:Over Temperature, Reverse Polarity
- Operating Temperature:-55°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:5-TSSOP, SC-70-5, SOT-353
- Supplier Device Package:SC-70-5
