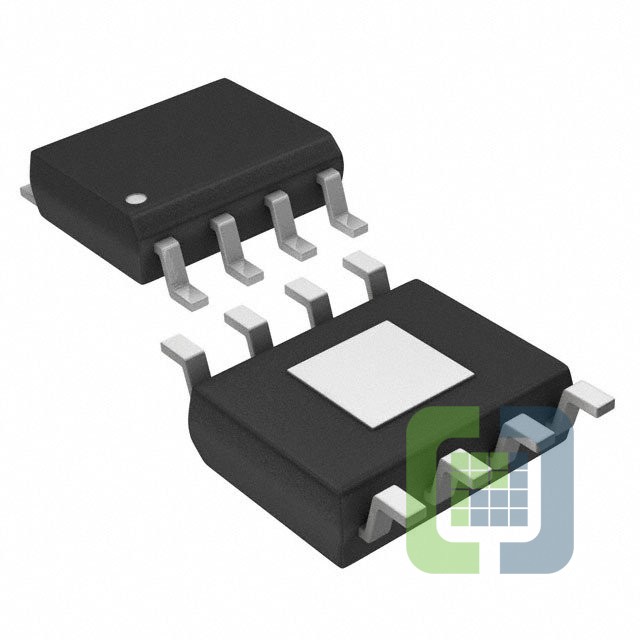

ADP7102ARDZ-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 300MA 8SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP7102ARDZ-R7 Datasheet
-
ECAD Model
- Share
In Stock: 290
Can ship immediately
Pricing:
- 1$4.33
- 1,000$2.31099
- 2,000$2.19544
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):1.22V
- Voltage - Output (Max):19.675V
- Voltage Dropout (Max):0.325V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):900 µA
- Current - Supply (Max):1.4 mA
- PSRR:80dB ~ 50dB (10kHz ~ 100kHz)
- Control Features:Enable, Power Good, Under Voltage Lockout
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SOIC-EP
