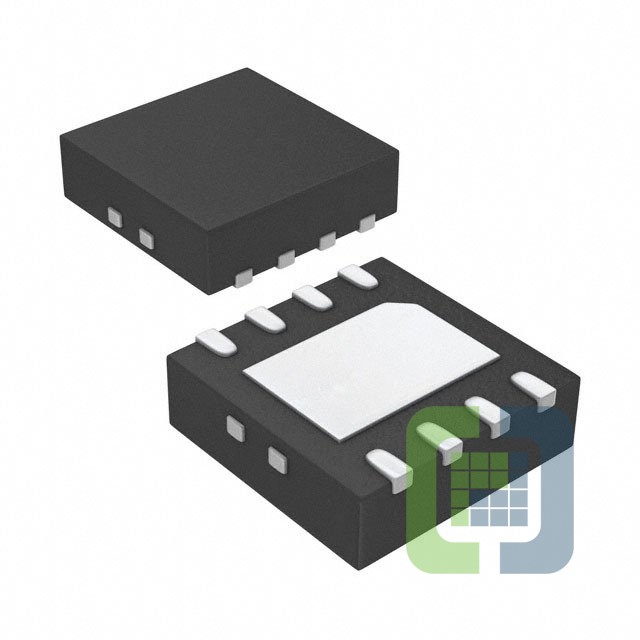

LT3015EDD#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR NEG ADJ 1.5A 8DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3015EDD#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 1,705
Can ship immediately
Pricing:
- 1$6.53
- 2,500$3.56924
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-30V
- Voltage - Output (Min/Fixed):-1.22V
- Voltage - Output (Max):-29.5V
- Voltage Dropout (Max):0.5V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):2.4 mA
- Current - Supply (Max):70 mA
- PSRR:65dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-WFDFN Exposed Pad
- Supplier Device Package:8-DFN (3x3)
Related Products

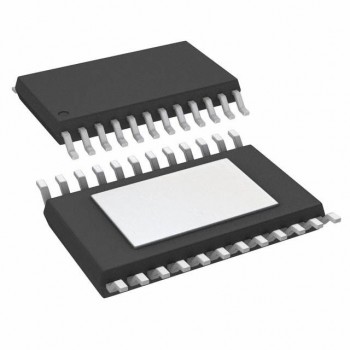

IC REG LINEAR POS ADJ 24HTSSOP
