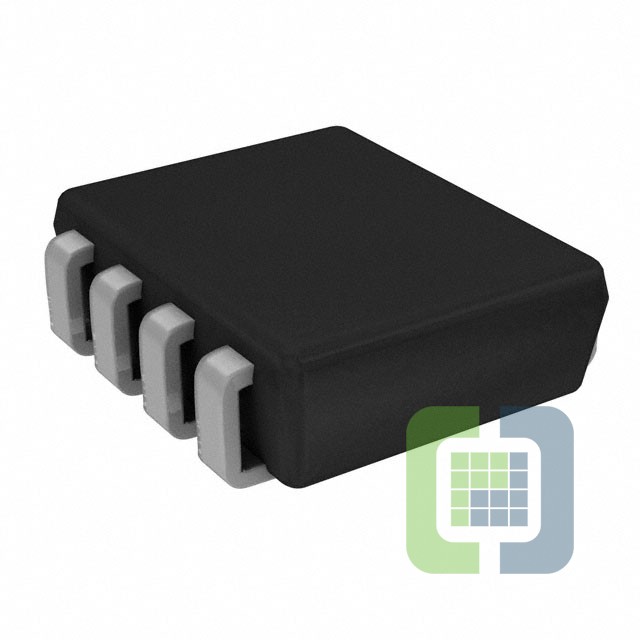

AAT3258ITS-3.3-R-T1
Skyworks Solutions, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 300MA 8TSOPJW
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AAT3258ITS-3.3-R-T1 Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):125 µA
- Current - Supply (Max):-
- PSRR:67dB ~ 45dB (1kHz ~ 100kHz)
- Control Features:Enable, Manual Reset, Reset
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:8-TSSOJ (0.094", 2.40mm Width)
- Supplier Device Package:8-TSOPJW
