TLV71736PDQNR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.6V 150MA 4X2SON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 6,137
Can ship immediately
Pricing:
- 1$0.1
- 3,000$0.1
- 6,000$0.09394
- 15,000$0.08788
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):3.6V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.35V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):55 µA
- Current - Supply (Max):-
- PSRR:70dB ~ 43dB (10Hz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 85°C (TJ)
- Mounting Type:Surface Mount

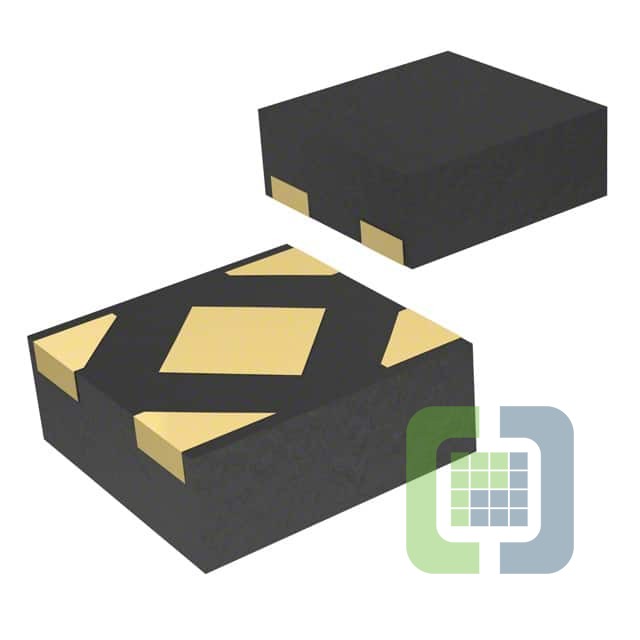

- Package / Case:4-XDFN Exposed Pad
- Supplier Device Package:4-X2SON (1x1)
