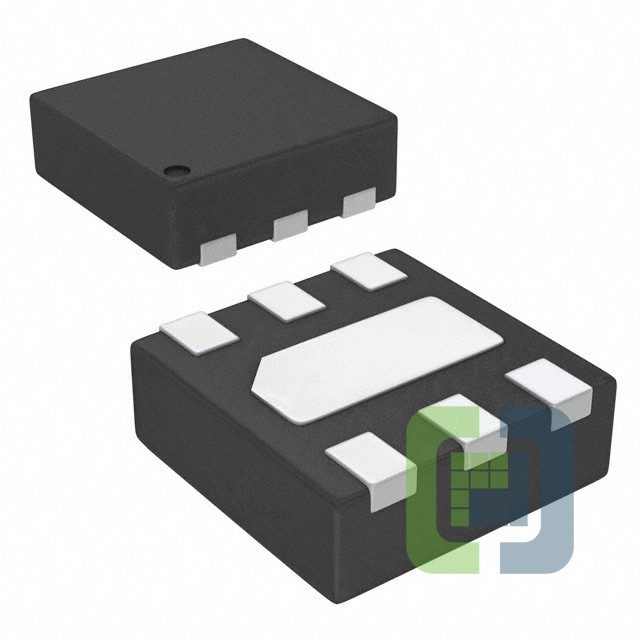

TLV716120275PDPQR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.2V/2.75V 6X2SON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 78,161
Can ship immediately
Pricing:
- 1$0.13
- 3,000$0.13
- 6,000$0.12161
- 15,000$0.11323
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V, 2.75V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1V @ 150mA, 0.45V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):75 µA
- Current - Supply (Max):-
- PSRR:80dB ~ 46dB (100Hz ~ 10kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-XFDFN Exposed Pad
- Supplier Device Package:6-X2SON (1.2x1.2)
