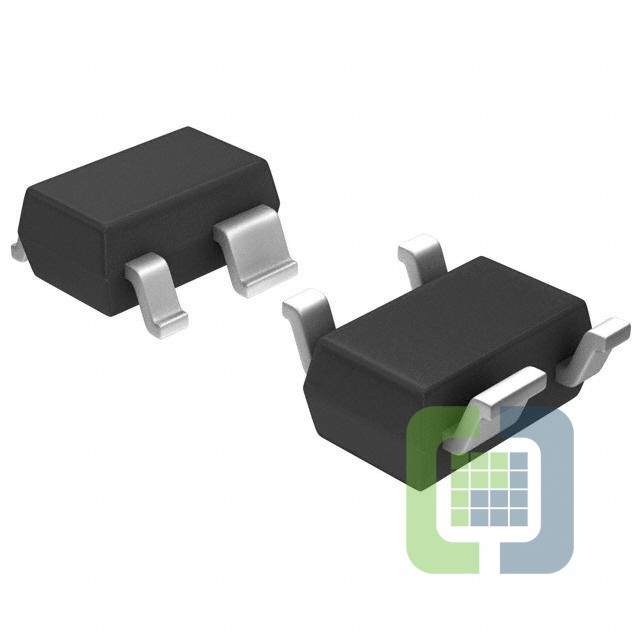

NCP563SQ30T1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3V 80MA SC82AB
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP563SQ30T1G Datasheet
-
ECAD Model
- Share
In Stock: 29,059
Can ship immediately
Pricing:
- 1$0.2
- 3,000$0.2
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.35V @ 80mA
- Current - Output:80mA
- Current - Quiescent (Iq):1 µA
- Current - Supply (Max):6 µA
- PSRR:-
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SC-82A, SOT-343
- Supplier Device Package:SC-82AB
Related Products

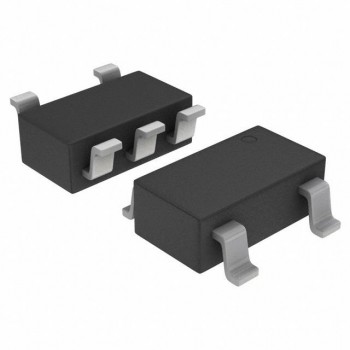

IC REG LINEAR 2.9V 150MA SOT23-5
- 1: $0.20000
- 3000: $0.20000
- 6000: $0.18621
IC REG LINEAR 1.8V 50MA SC82AB
- 1: $0.20000
IC REG LINEAR 2.4V 35MA SOT23-5
- 1: $0.20000
IC REG LINEAR 1.2V 300MA SOT23-5
- 1: $0.20000
IC REG LINEAR 3.2V 300MA SOT23-5
- 1: $0.20000

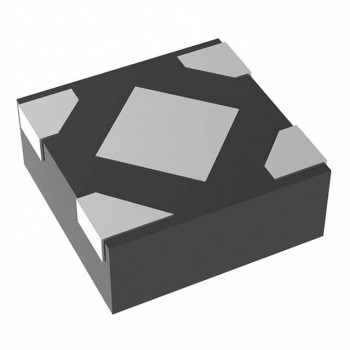

IC REG LIN 2.5V 150MA DFN1010-4
