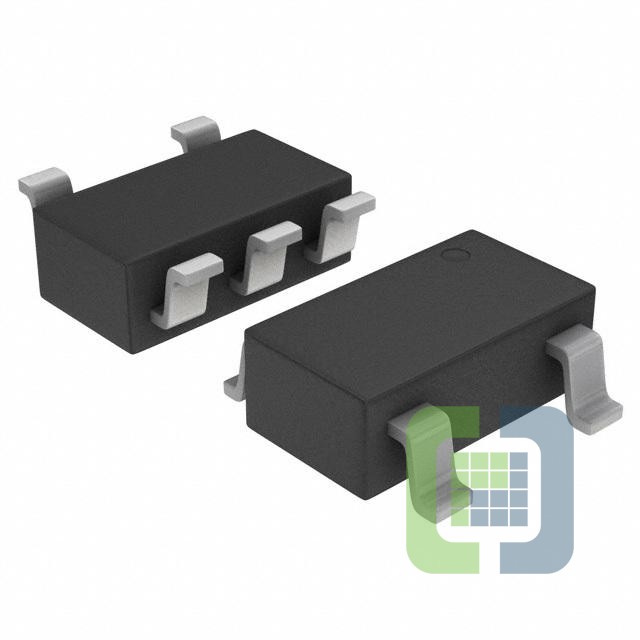

NCP502SN35T1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.5V 80MA 5TSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP502SN35T1G Datasheet
-
ECAD Model
- Share
In Stock: 9,181
Can ship immediately
Pricing:
- 1$0.21
- 3,000$0.21
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):12V
- Voltage - Output (Min/Fixed):3.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.2V @ 80mA
- Current - Output:80mA
- Current - Quiescent (Iq):40 µA
- Current - Supply (Max):90 µA
- PSRR:55dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
