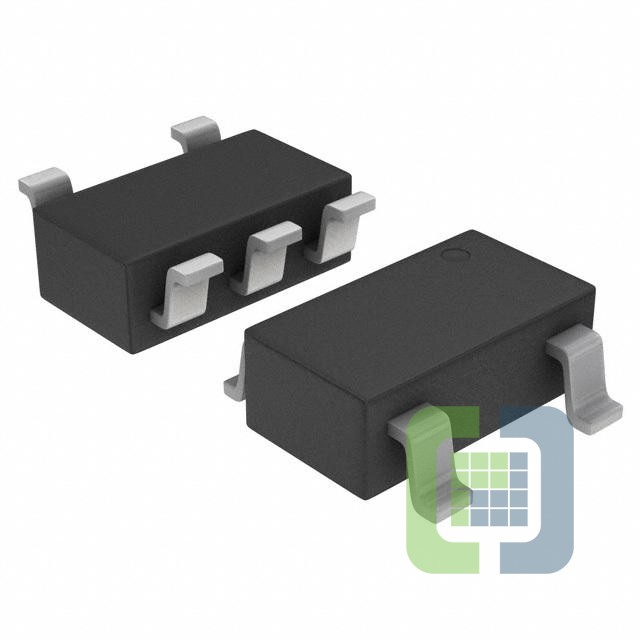

NCV8560SN130T1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.3V 150MA 5TSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV8560SN130T1G Datasheet
-
ECAD Model
- Share
In Stock: 113,108
Can ship immediately
Pricing:
- 1$0.28
- 3,000$0.28
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:150mA
- Current - Quiescent (Iq):150 µA
- Current - Supply (Max):-
- PSRR:62dB ~ 38dB (120Hz ~ 10kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
