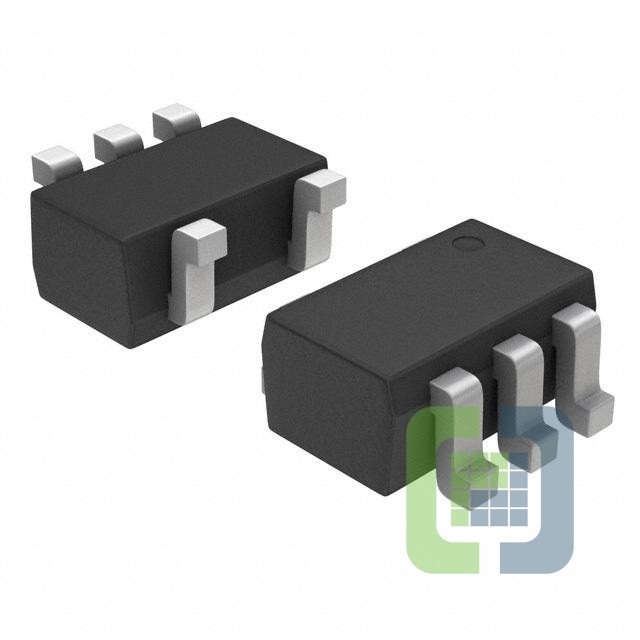

NCP715SQ33T2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED POSITIVE LDO REGULATOR, 3.
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP715SQ33T2G Datasheet
-
ECAD Model
- Share
In Stock: 9,184
Can ship immediately
Pricing:
- 1$0.29
- 3,000$0.10615
- 6,000$0.09883
- 15,000$0.09517
- 30,000$0.09151
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.35V @ 50mA
- Current - Output:50mA
- Current - Quiescent (Iq):4.2 µA
- Current - Supply (Max):5.8 µA
- PSRR:60dB (100kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:5-TSSOP, SC-70-5, SOT-353
- Supplier Device Package:SC-88A (SC-70-5/SOT-353)
