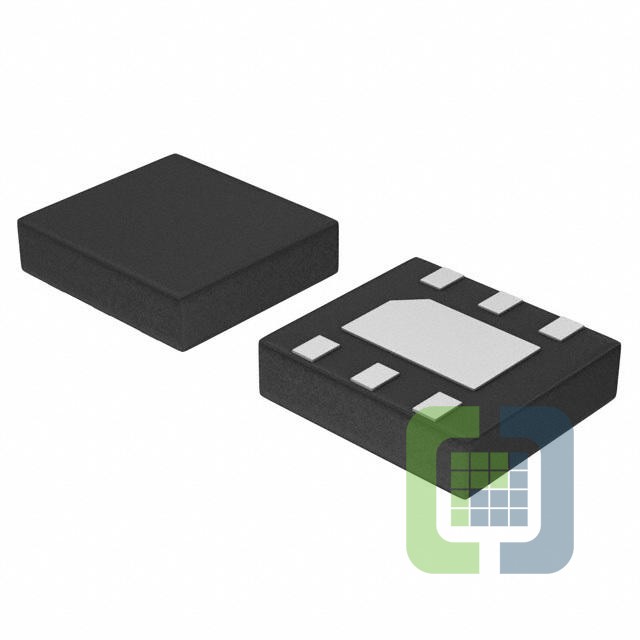

NCP690MN50T2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 1A 6DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP690MN50T2G Datasheet
-
ECAD Model
- Share
In Stock: 8,874
Can ship immediately
Pricing:
- 1$0.32
- 3,000$0.32
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.21V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):240 µA
- PSRR:-
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:6-VDFN Exposed Pad
- Supplier Device Package:6-DFN (3x3)
