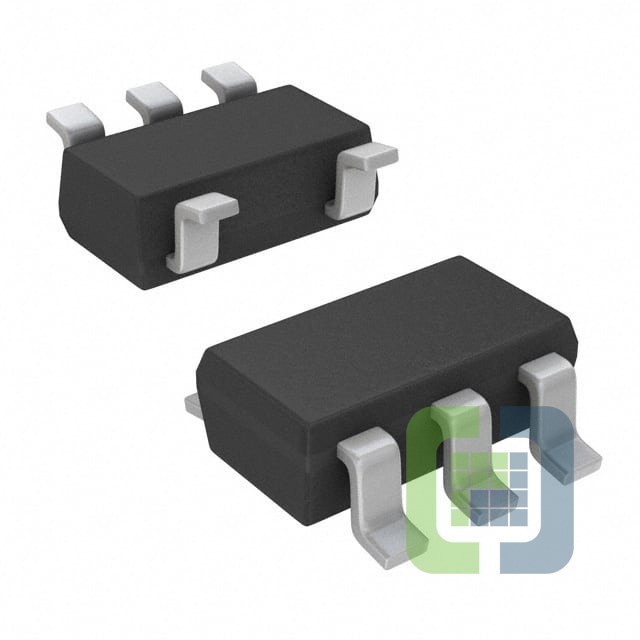

TPS799315DDCR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 3.15V 200MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$0.36
- 3,000$0.3567
- 6,000$0.3321
- 15,000$0.3198
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6.5V
- Voltage - Output (Min/Fixed):3.15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.18V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):60 µA
- Current - Supply (Max):-
- PSRR:70dB ~ 38dB (100Hz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:SOT-23-5
