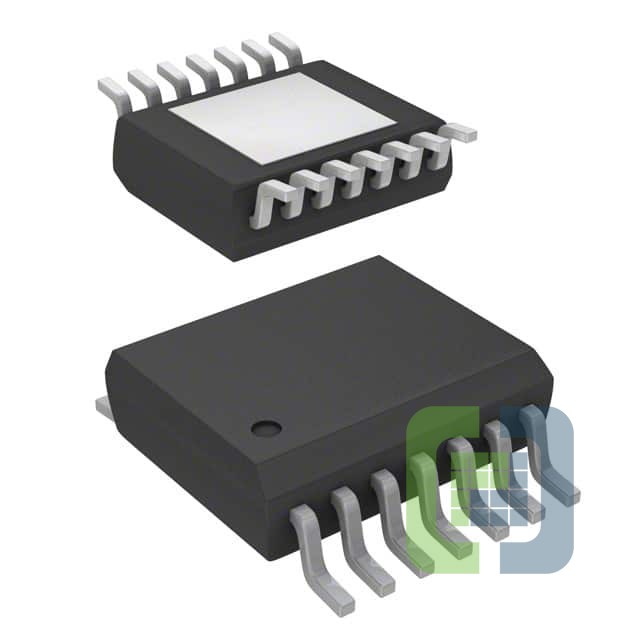

TLS820D0ELV50XUMA1
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 200MA SSOP-14-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TLS820D0ELV50XUMA1 Datasheet
-
ECAD Model
- Share
In Stock: 1,270
Can ship immediately
Pricing:
- 1$1.84
- 2,500$0.74566
- 5,000$0.71016
Quote It
Technical Details
- Series:Automotive, AEC-Q100, OPTIREG™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.34V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):5 µA
- Current - Supply (Max):80 µA
- PSRR:59dB (100Hz)
- Control Features:Delay, Enable, Reset, Watchdog
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:14-LSSOP (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:PG-SSOP-14-5
