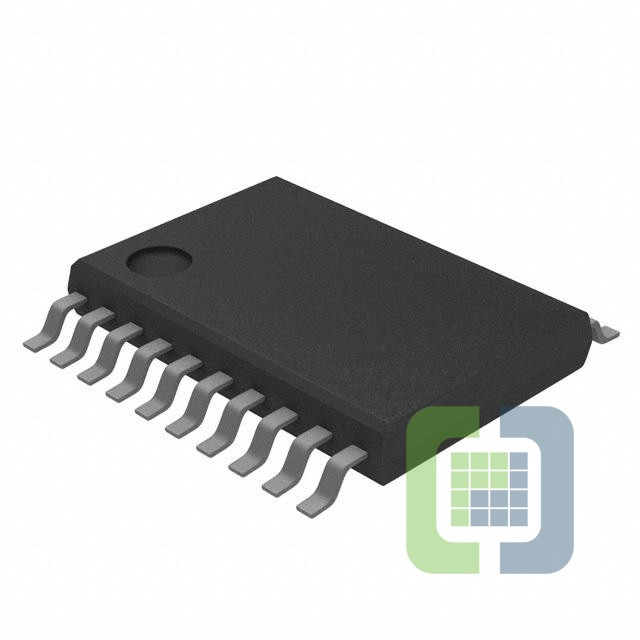

TPS7301QPW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA 20TSSOP
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 12,615
Can ship immediately
Pricing:
- 1$2.05
- 10$1.84108
- 70$1.74042
- 140$1.50834
- 560$1.28403
- 1,050$1.08292
- 2,520$1.02877
- 5,040$0.99009
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):10V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):9.75V
- Voltage Dropout (Max):0.21V @ 200mA
- Current - Output:500mA
- Current - Quiescent (Iq):-
- Current - Supply (Max):550 µA
- PSRR:68dB (100Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:20-TSSOP
