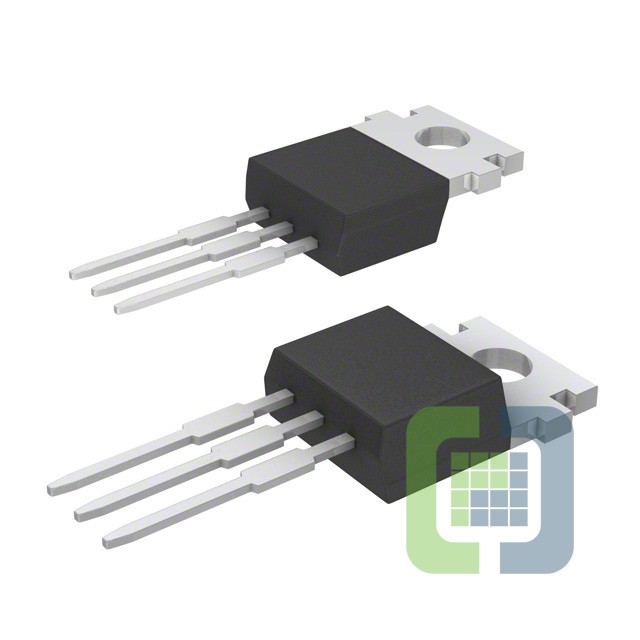

LM1086IT-ADJ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1.5A TO220-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 5,830,152
Can ship immediately
Pricing:
- 1$1.97
- 10$1.76876
- 45$1.66826
- 135$1.42129
- 540$1.1677
- 1,035$0.96752
- 2,520$0.9008
- 5,040$0.86744
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):29V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):1.5V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:75dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3
- Supplier Device Package:TO-220-3
