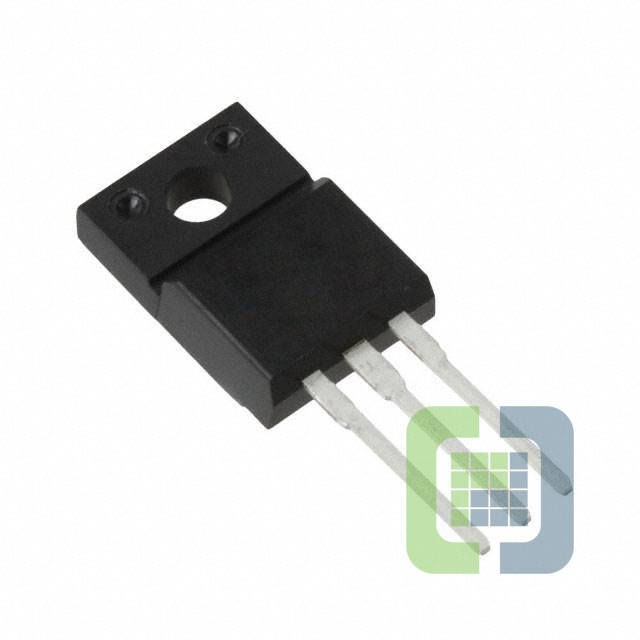

NJM7808FA
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 8V 1.5A TO220F
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NJM7808FA Datasheet
-
ECAD Model
- Share
In Stock: 1,107
Can ship immediately
Pricing:
- 1$0.88
- 10$0.781
- 25$0.7056
- 100$0.6174
- 250$0.5418
- 500$0.4788
- 1,000$0.378
- 2,500$0.3528
- 5,000$0.33516
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:1.5A
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):-
- PSRR:72dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3 Full Pack
- Supplier Device Package:TO-220F
