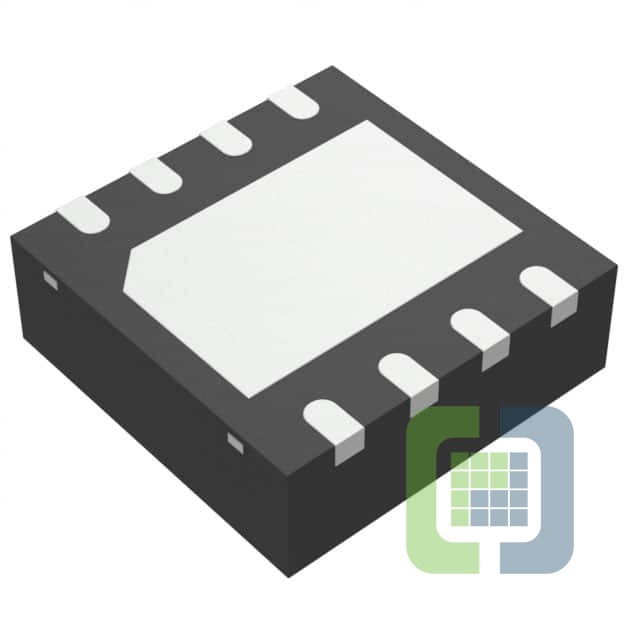

TPS715A01DRBT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 80MA 8SON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 65,610,115
Can ship immediately
Pricing:
- 1$1.42
- 250$0.87076
- 500$0.7695
- 1,250$0.6075
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):1.12V @ 80mA
- Current - Output:80mA
- Current - Quiescent (Iq):4.2 µA
- Current - Supply (Max):5.8 µA
- PSRR:60dB (100kHz)
- Control Features:-
- Protection Features:Over Current, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-VDFN Exposed Pad
- Supplier Device Package:8-SON (3x3)
