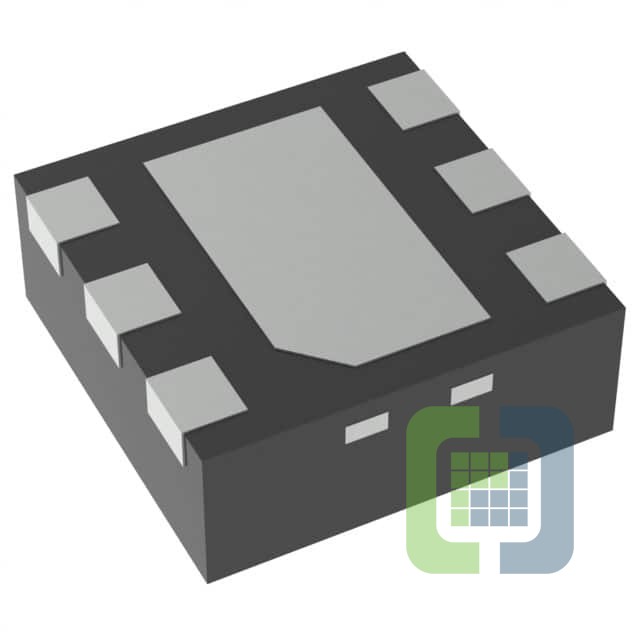

TPS70630DRVT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3V 150MA 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,048
Can ship immediately
Pricing:
- 1$0.93
- 250$0.54756
- 500$0.466
- 1,250$0.3728
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6.5V
- Voltage - Output (Min/Fixed):3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.54V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):2.55 µA
- Current - Supply (Max):350 µA
- PSRR:80dB ~ 52dB (10Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (2x2)
