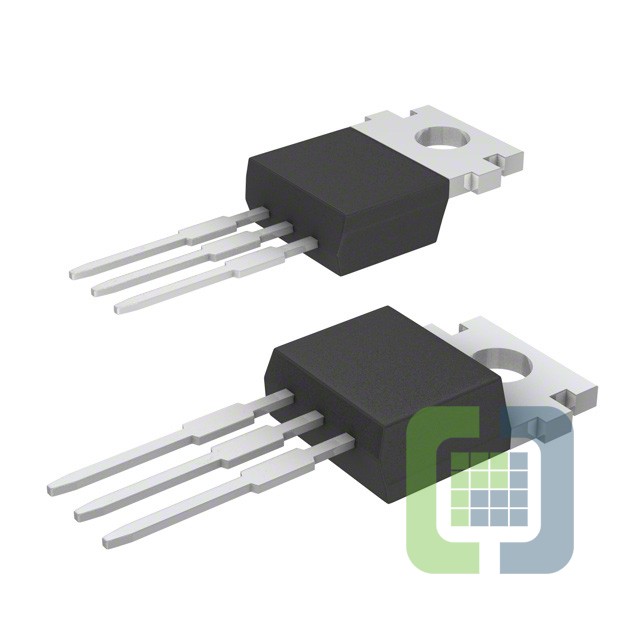

UA7824CKCSE3
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 24V 1.5A TO220-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 374
Can ship immediately
Pricing:
- 1$0.83
- 10$0.73368
- 50$0.68941
- 100$0.56256
- 500$0.44472
- 1,000$0.35577
- 2,500$0.32242
- 5,000$0.30018
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):38V
- Voltage - Output (Min/Fixed):24V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A
- Current - Output:1.5A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:78dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3
- Supplier Device Package:TO-220-3
