UA7815CKCSE3
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant

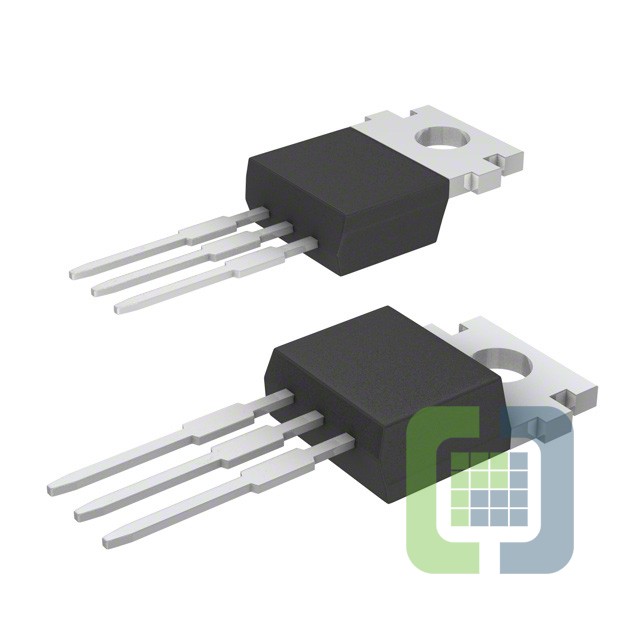

- DescriptionIC REG LINEAR 15V 1.5A TO220-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 787
Can ship immediately
Pricing:
- 1$0.86
- 10$0.7602
- 50$0.71433
- 100$0.58289
- 500$0.46079
- 1,000$0.36863
- 2,500$0.33407
- 5,000$0.31103
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A
- Current - Output:1.5A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:78dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3
- Supplier Device Package:TO-220-3
